NG Series Screw Gas Ends

In gas compression, performance is defined by consistency, durability, and the ability to adapt to different gas compositions and operating demands. The NG Series screw gas ends from TMIC are designed as oil-injected, single-stage compression elements that deliver reliable performance across a wide range of industrial, energy, and process applications.

Developed for OEM integration, the NG Series provides a scalable solution for handling natural gas, biogas, methane, and process gases, helping manufacturers design robust compressor packages for upstream, midstream, and industrial use cases. With multiple frame sizes and a broad operating envelope, these gas ends enable flexibility without sacrificing efficiency or reliability.

The NG Series is explicitly built to support diverse gas compositions, making it suitable for industries where gas quality and process conditions vary. TMIC positions these gas ends for applications such as oil & gas, petrochemical processing, vapor recovery units, and biogas systems, where stable compression and sealing integrity are critical.

Each unit incorporates mechanical seals, optimized gear ratios, and high-quality bearings, allowing reliable handling of gases with different chemical and physical properties. This makes the NG Series particularly valuable for OEMs developing equipment for dynamic environments where reliability and adaptability are essential.

One of the key strengths of the NG Series is its broad performance envelope, supporting OEMs who need to design multiple compressor variants within a single product platform.

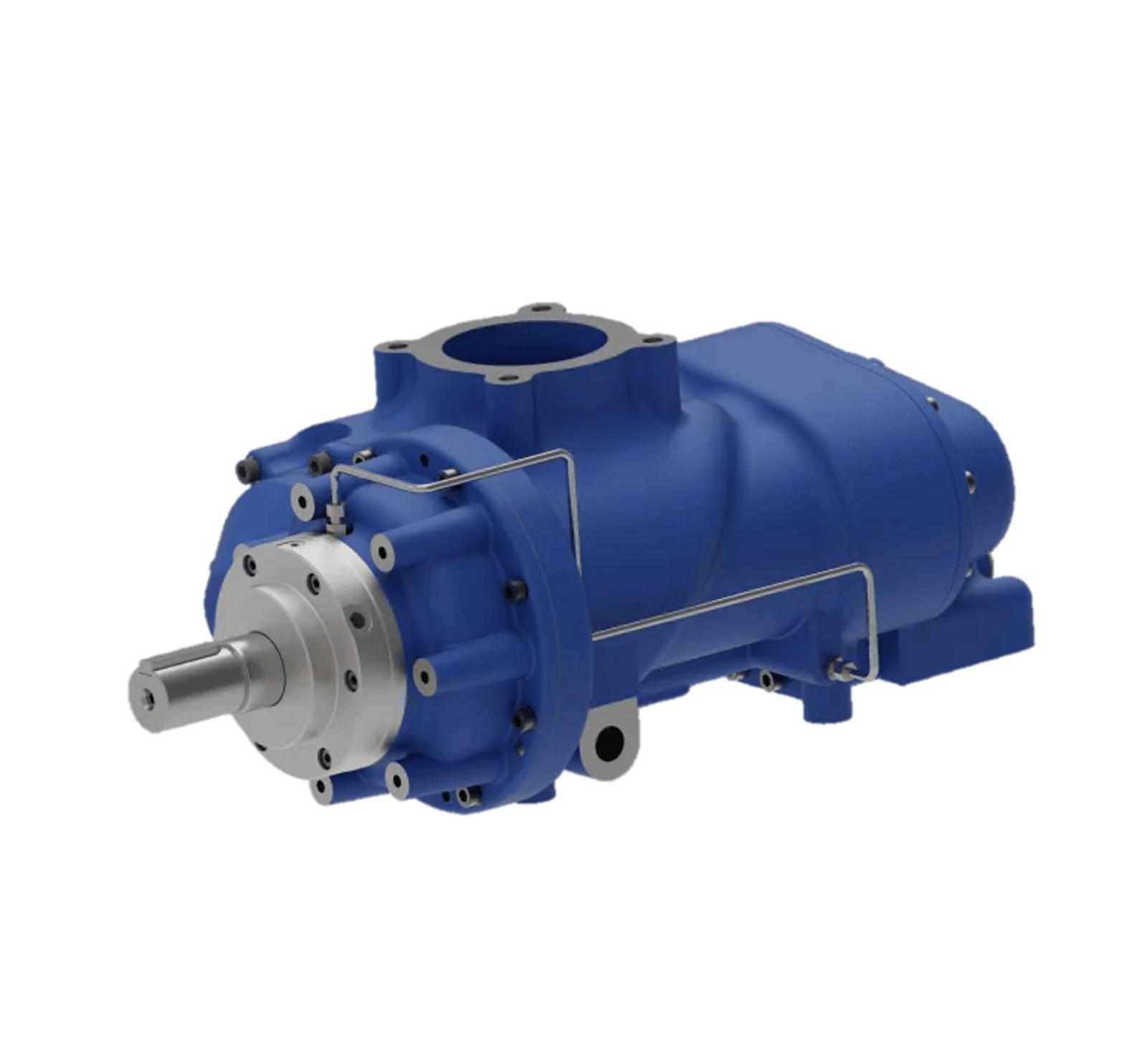

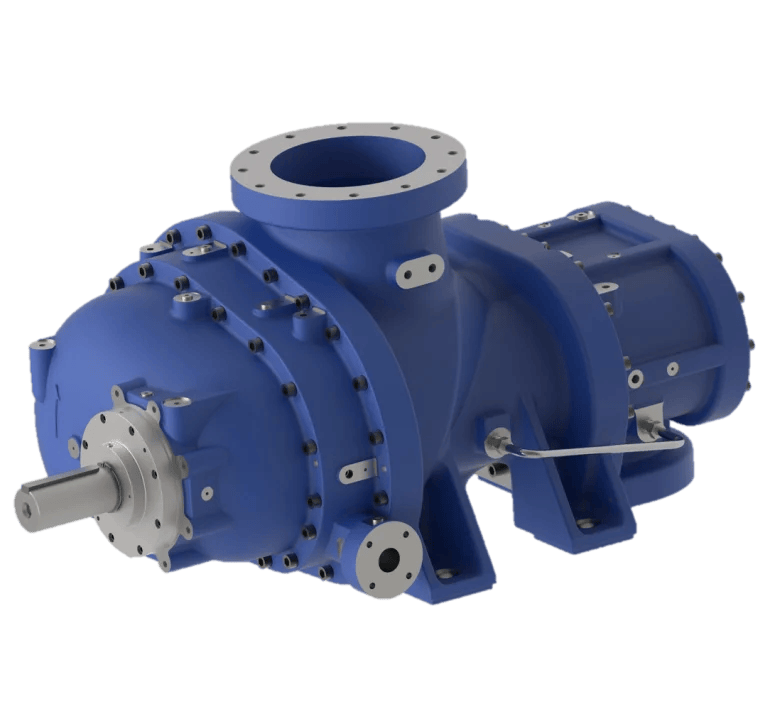

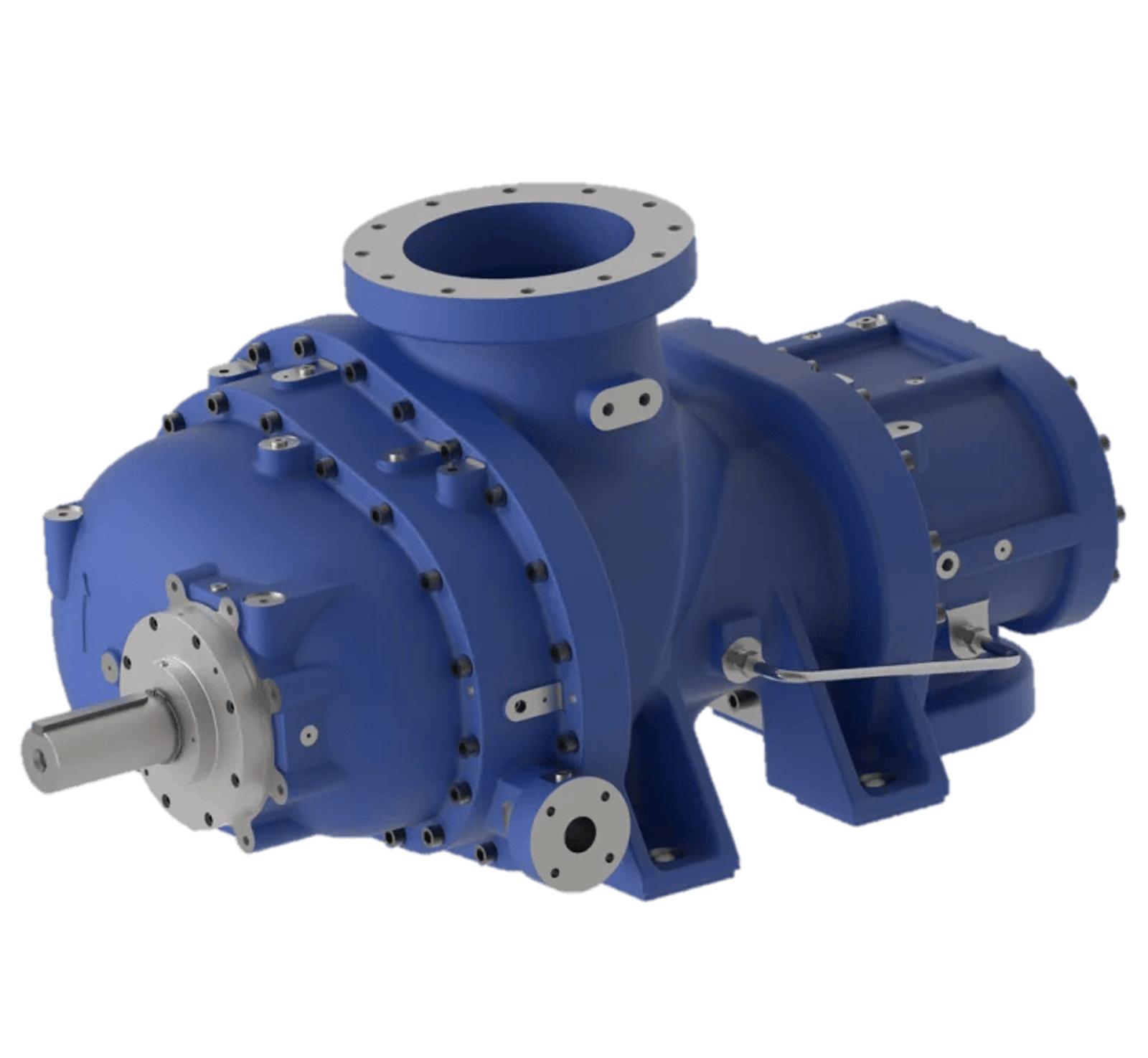

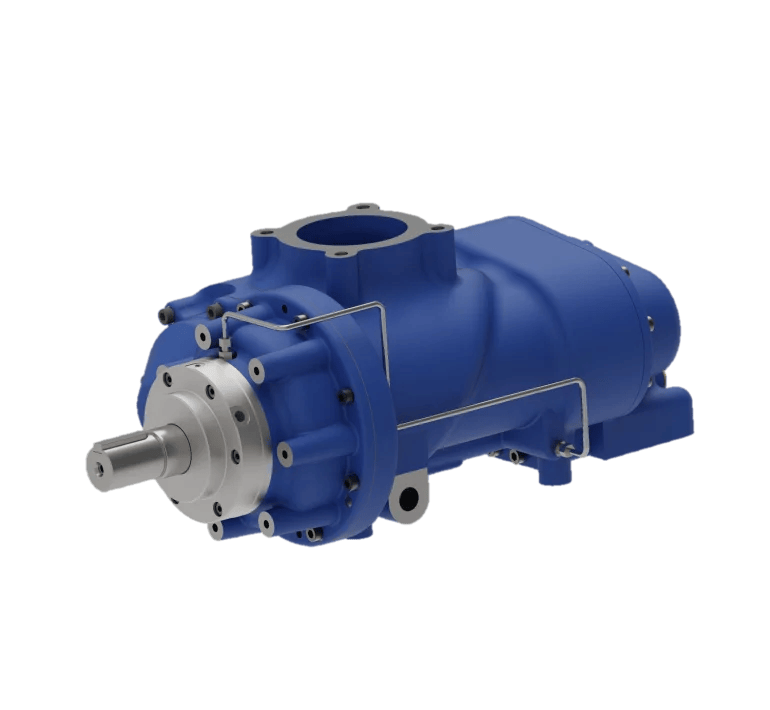

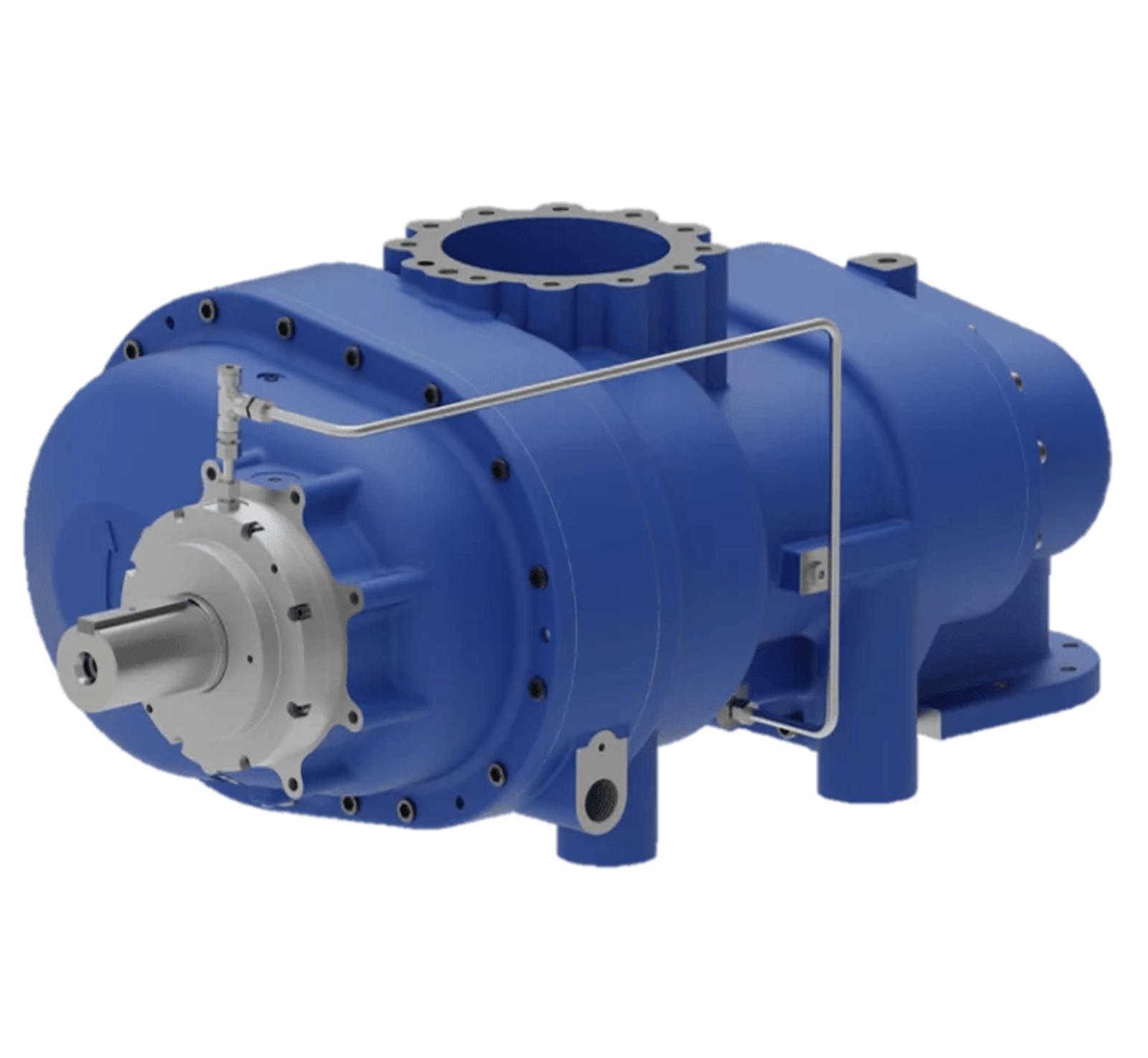

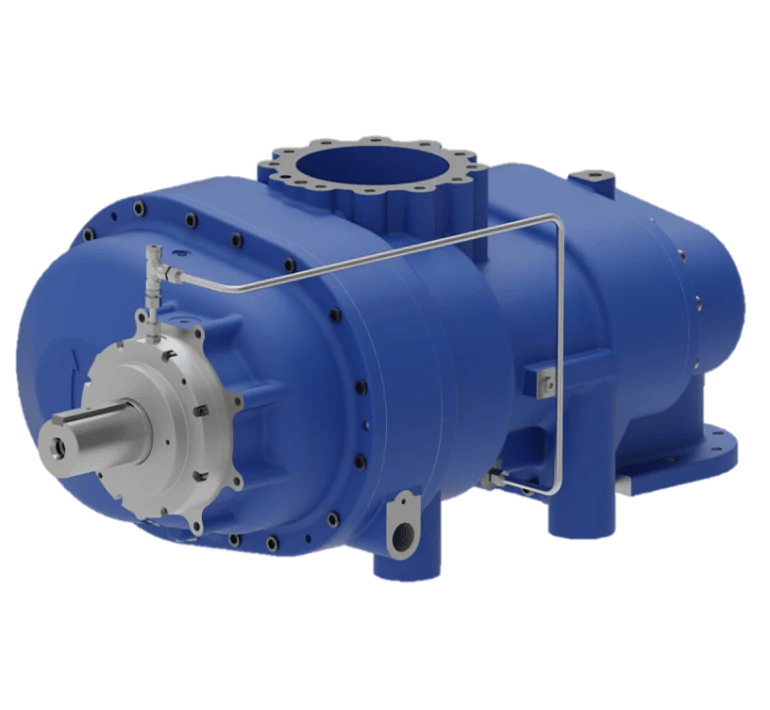

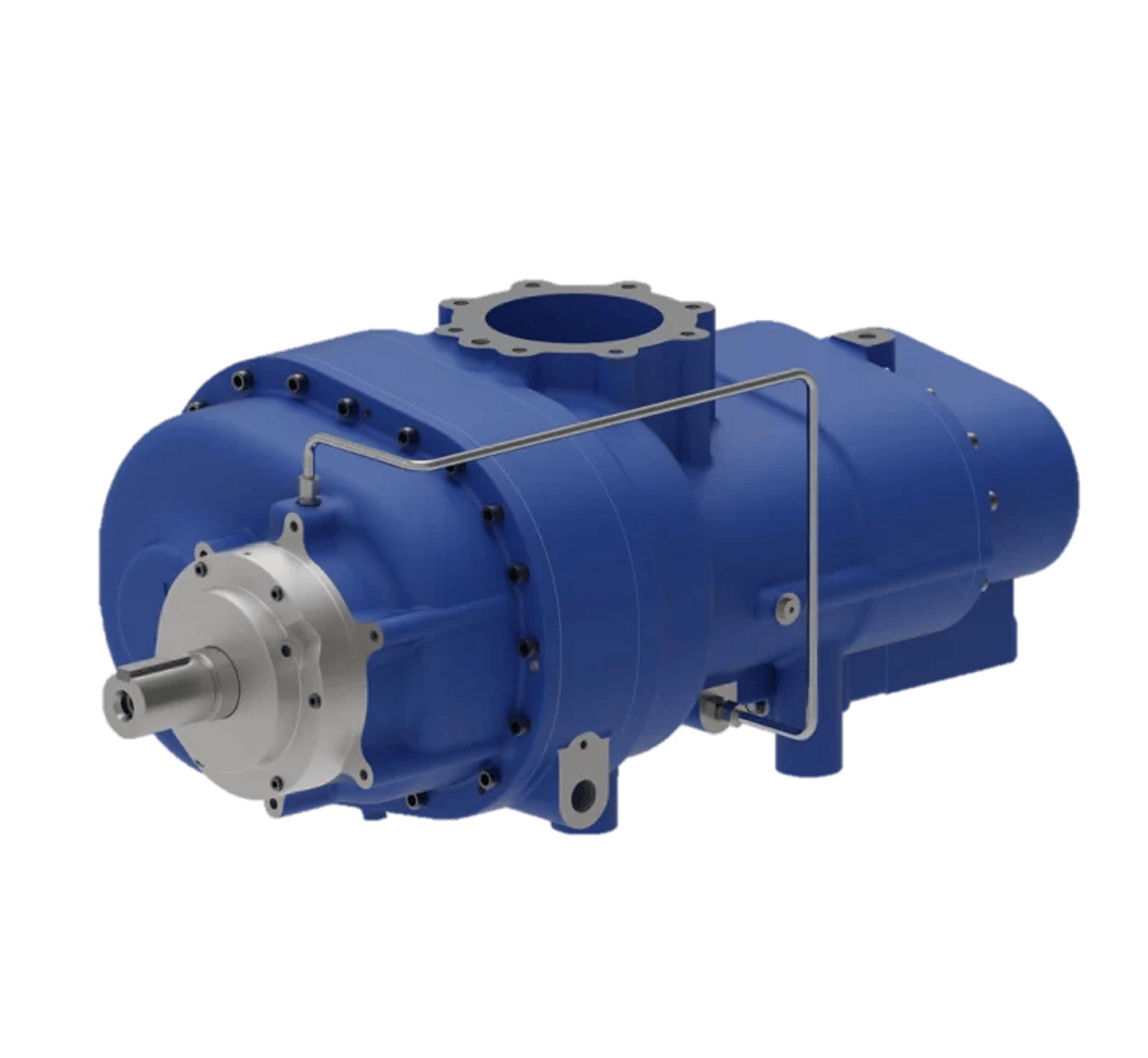

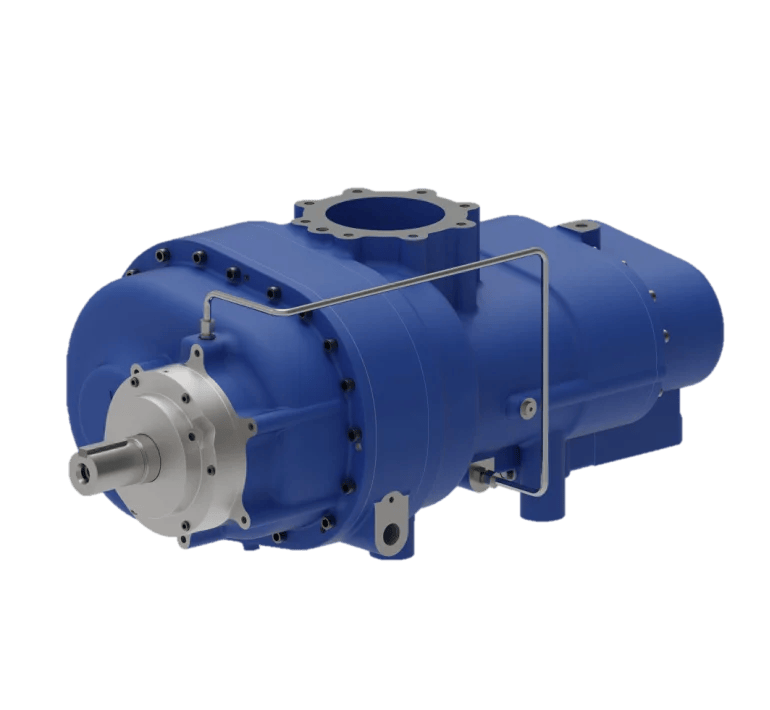

The range includes multiple sizes (NG 8 through NG 36), covering:

• Power range from approximately 7.5 kW up to 900 kW
• Flow capacity from 0.7 to 90 m³/min
• Maximum discharge pressure up to 20 barg

This scalability allows OEMs to design both compact systems and large industrial compression packages within the same technology family. It also simplifies engineering, procurement, and servicing by standardizing components across different system capacities.

The NG Series is designed with OEM integration in mind, featuring bare-shaft configuration and integrated gearbox options. This architecture allows flexibility in matching the gas end to different drive systems, including electric motors and engine-driven configurations.

The inclusion of single-stage compression with an integrated gear system simplifies package design while supporting efficient speed matching for optimal operating points.

For OEM manufacturers, this means:

• Easier mechanical integration into compressor packages
• Compatibility with different layout constraints
• Reduced engineering complexity when standardizing system platforms

This flexibility is critical in shortening development cycles and ensuring performance consistency across product lines.

TMIC’s NG Series benefits from extensive experience in oil-injected screw compressor design, resulting in components built for long service life even in harsh industrial environments.

The use of robust bearings, precision gear systems, and proven sealing solutions supports continuous operation under high pressure and variable load conditions. The design focus is on minimizing wear, improving operational stability, and maintaining consistent output over time.

For customers and OEM partners, this translates into:

• Reduced unplanned downtime
• Lower lifecycle maintenance costs
• Reliable operation in both land-based and marine applications

The NG Series is not just a component—it is a core element that supports the overall performance and competitiveness of your compression system.
