NG - SCG Series Marine Screw Compressors

Screw Gas-ends

TM.I.C. specializes in the production of Oil-Injected Screw Gas Ends, tailored for every type of gas application. Our NG series, comprising nine sizes, is capable of achieving a suction pressure of 1 barg (14.5 psig) and a discharge pressure of 20 barg (290 psig), with a maximum achievable flow of 90 m³/min (3200 cfm). Each unit is equipped with a gear ratio, mechanical seal, and top-quality bearings, making them suitable for various gas compositions. The quality and reliability of our products are ensured by the extensive experience we have gained in the field.

NG 13 - Marine - Product Parameters

	MEASURE	MIN	MAX
Power range	kW	30	75
Power range	HP	40	100
Flow range	m3/min	3	8
Flow range	cfm	105	280
Max allowable working pressure	barg/psig	20/290	20/290

* referred to 10 bar

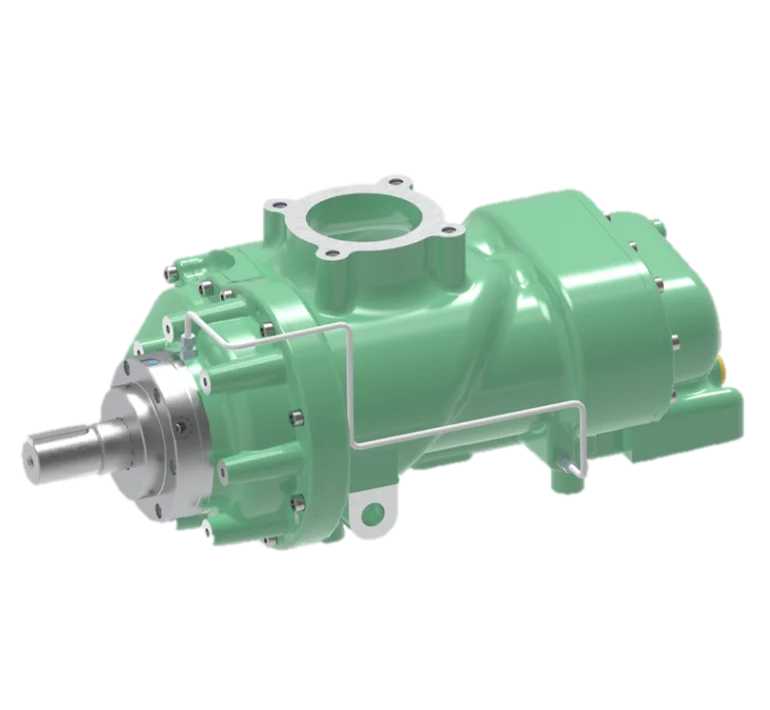

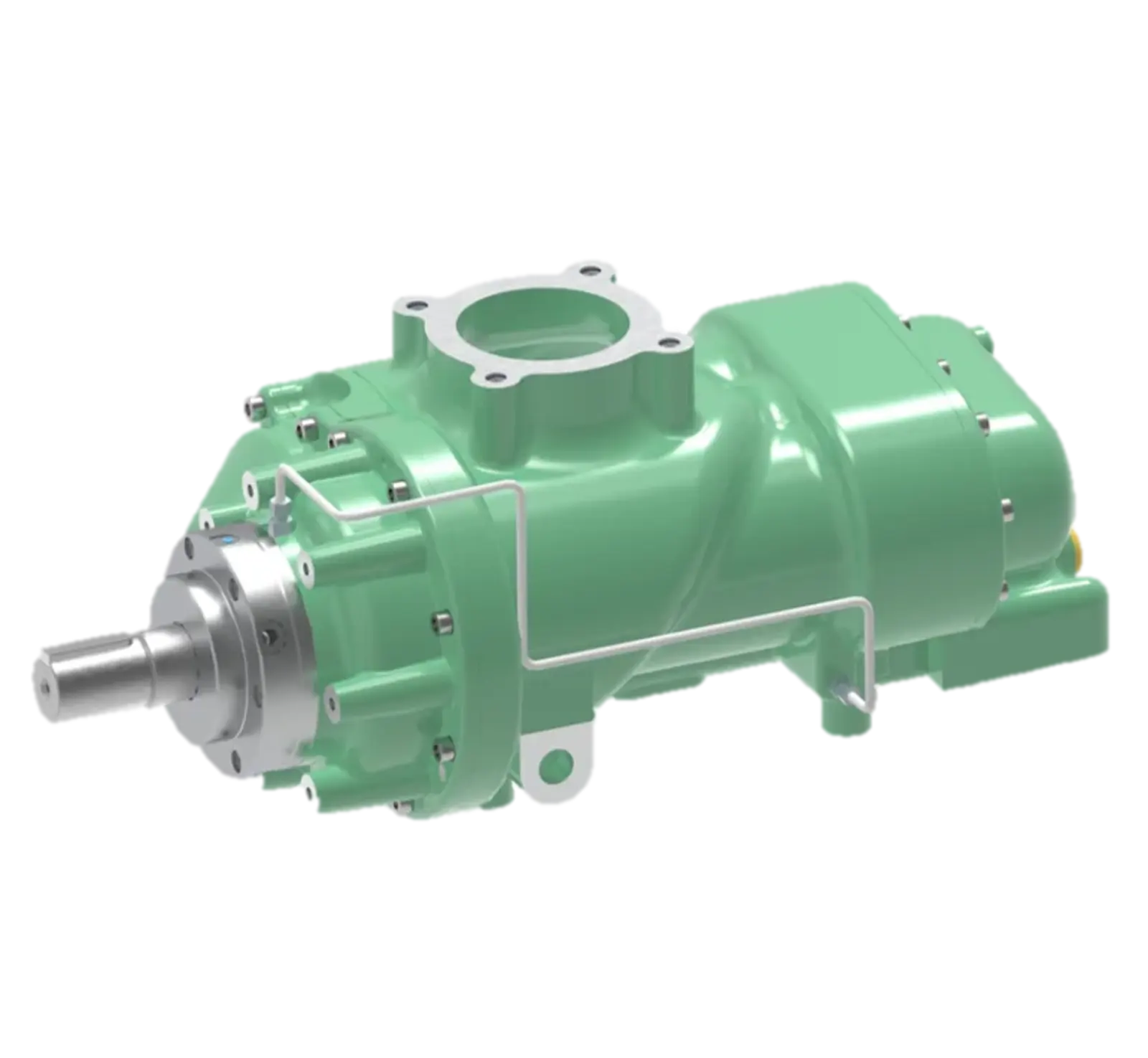

NG 14 - Marine - Product parameters

	MEASURE	MIN	MAX
Power range	kW	37	110
Power range	HP	50	150
Flow range	m3/min	4	13
Flow range	cfm	140	460
Max allowable working pressure	barg/psig	20/290	20/290

* referred to 10 bar

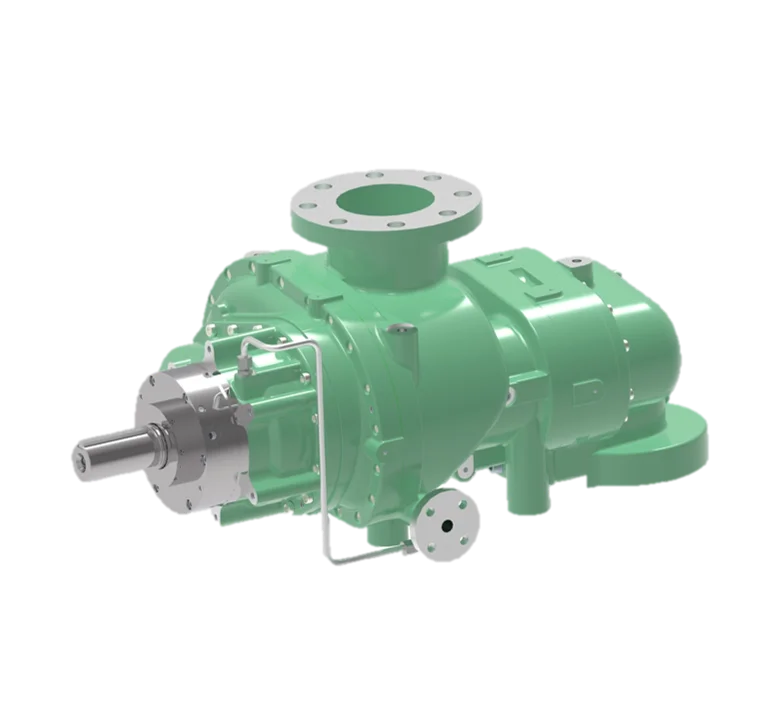

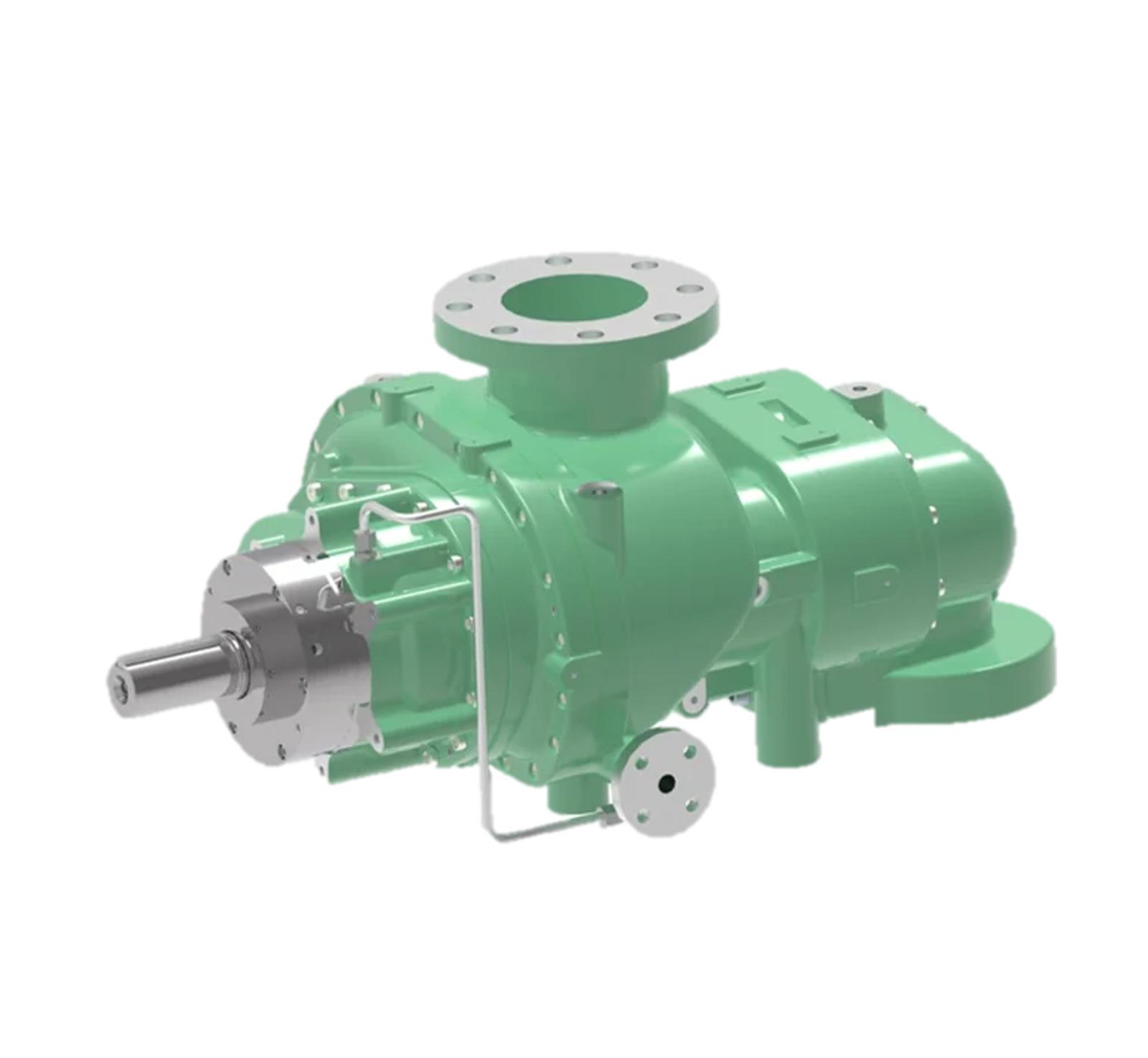

NG 21 - Marine - Product Parameters

	MEASURE	MIN	MAX
Power range	kW	75	200
Power range	HP	90	250
Flow range	m3/min	7	20
Flow range	cfm	250	700
Max allowable working pressure	barg/psig	20/290	20/290

* referred to 10 bar

NG 22 - Marine - Product Parameters

	MEASURE	MIN	MAX
Power range	kW	90	250
Power range	HP	120	330
Flow range	m3/min	9	22
Flow range	cfm	315	775
Max allowable working pressure	barg/psig	20/290	20/290

* referred to 10 bar

Oil Injected Screw Compressors;
Bare shaft;
Single Stage;
8 sizes;
Integrated gear-box;
Mechanical Seal
